TOOL STORAGE • SETUP • SHOP-FLOOR TRANSPORT
CNC tool storage cabinets & transport trolleys
Give every tool a defined place—from central storage to the next machine setup. Explore heavy duty CNC tool storage cabinets and CNC tool transport trolleys made in Germany, configured around your tooling, available space and daily workflow.
Configurable CNC tool cabinets and trolleys
Start with how tools move through your workshop. A cabinet provides a fixed storage location; a trolley brings the required tool set to the machine. Specify both around the same tool inventory so that storage, preparation and transport work together.
01 / STATIONARY STORAGE

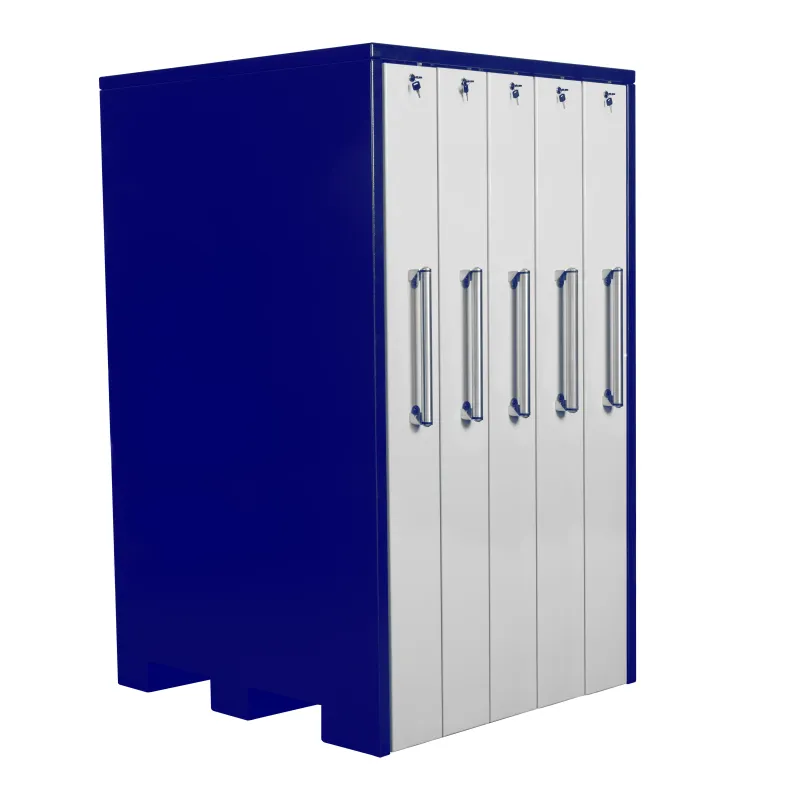

CNC tool cabinets with vertical pull-outs
Space saving CNC tool storage cabinets organise assembled tools and holders by machine, operation or job. Vertical pull-outs make use of cabinet depth and can offer access from both sides. Plan clearance for the opened pull-outs as well as the closed cabinet footprint.
- Dedicated locations for tool assemblies
- Configurable holders, trays and storage levels
- Lockable storage options
- Cabinet size selected for your available floor space
Best suited to: central tool stores, preparation areas and storage beside machining cells.
02 / MOBILE TOOL HANDLING

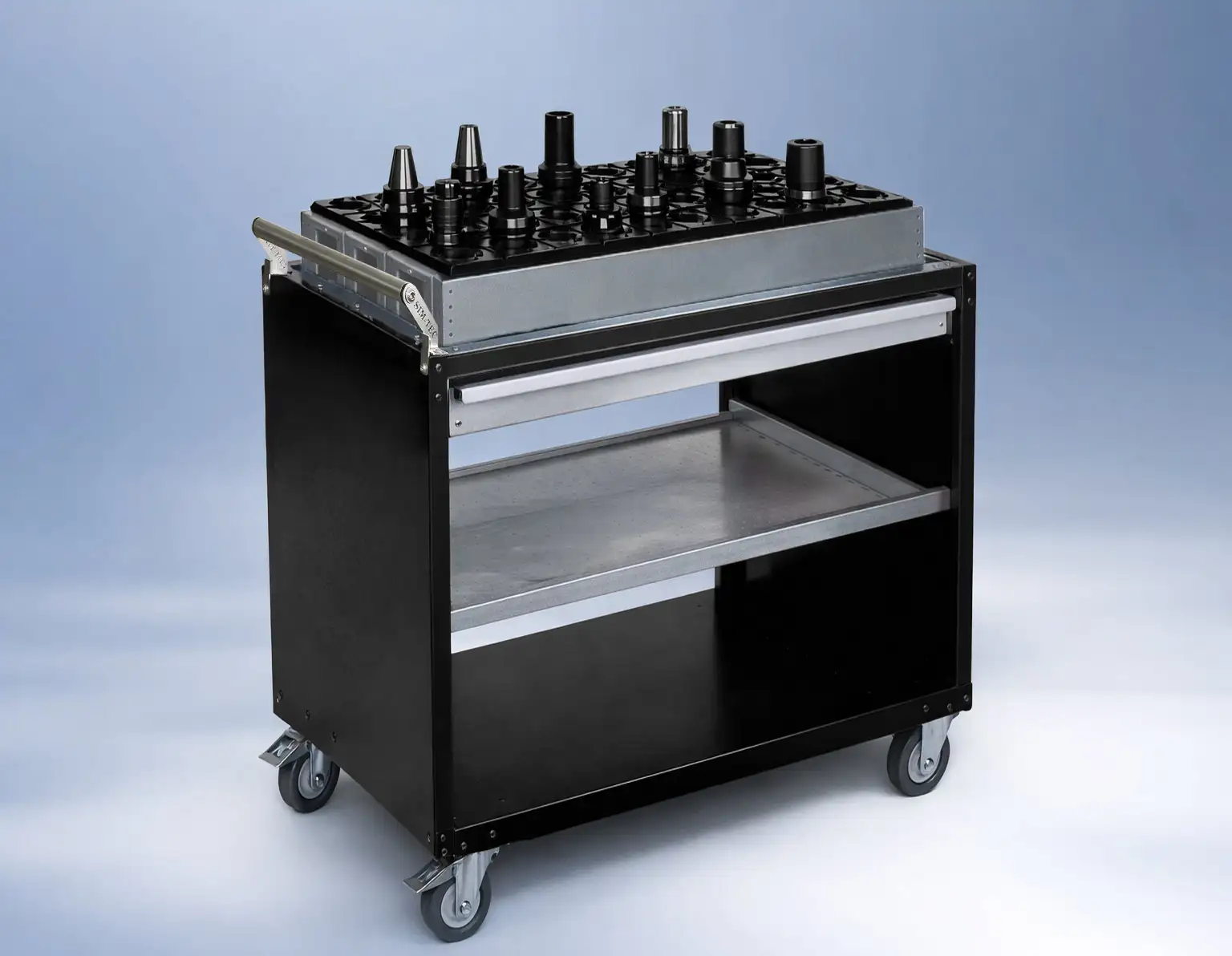

CNC tool transport trolleys
Mobile CNC tool storage carts bring prepared tool assemblies from storage and presetting to the machine. For a heavy duty CNC tool trolley with drawers, specify the holder layout, drawer contents and loaded weight so the configuration matches your daily work.
- Tool-holder layouts for machining applications
- Heavy-duty castors with locking options
- Configurable trays, shelves or drawers
- Capacity matched to the complete loaded trolley
Best suited to: setup preparation, tool changes and internal workshop transport.
CNC tool storage for SK, HSK, VDI and mixed tool holders
State the exact interface and size—for example SK, HSK, VDI or Capto—together with tool length, diameter and weight. Interface family alone is not enough to select a storage holder. Mixed inventories may need different holders and spacing within the same cabinet or trolley.
For a CNC tool storage cabinet for HSK tool holders, an SK40 tool holder storage trolley or a VDI tool holder storage cabinet, include the complete interface designation and tool dimensions in your inquiry. These are configuration requests: suitable storage inserts, spacing, usable capacity and load limits must be confirmed before ordering.
Cabinet sizes, standard colours & load capacity
Use these configuration options to define your requirements. All dimensions are in millimetres.
| Specification | Available options / rating |
|---|---|
| Cabinet heights | Compact: 1,290 mm · Medium: 1,690 mm · Tall: 2,090 mm |
| Cabinet depths | 800 mm · 1,100 mm · 1,300 mm |
| Pull-out widths | 200 mm · 300 mm · 400 mm; mixed-width layouts available |
| Overall cabinet width | Depends on the number and width of pull-outs; confirmed for the selected layout. |
| Internal adjustment grid | 12.5 mm for compatible holders and modules |
| 200 mm pull-outs | 900 kg per pull-out |
| 300 / 400 mm pull-outs | Up to 1,000 kg per pull-out, subject to confirmation for the selected version. |
Standard powder-coated finishes
- Blue / white: cabinet body in RAL 5010 Gentian blue, pull-outs in RAL 9016 Traffic white.
- Anthracite / white: cabinet body in RAL 7016 Anthracite grey, pull-outs in RAL 9016 Traffic white.
- Black grey: cabinet body and pull-outs in RAL 7021 Black grey.
Other RAL colours and individual finishes can be requested at additional cost.
Load rating: capacities above apply to individual pull-outs, not the complete cabinet or each tool holder. Published ratings for some 300 / 400 mm variants differ; the applicable 900 kg or 1,000 kg rating must be confirmed in the quotation. Do not calculate a total cabinet rating by multiplying the pull-out rating. Holder limits, load distribution, installation requirements and the approved total load must be checked for the selected configuration.
CONFIGURE YOUR WORKSPACE
CNC tool trolley accessories and cabinet tool racks
Complete your cabinet or trolley with accessories selected for the tools, small parts and setup tasks in your workshop.
Product images show example configurations. Equipment, accessories and colours may vary by the selected specification.
CNC tool-holder racks and storage inserts
Dedicated positions for tool assemblies. Specify the interface and size—such as SK, HSK, VDI or Capto—plus tool dimensions and weight so that suitable holders and spacing can be selected.

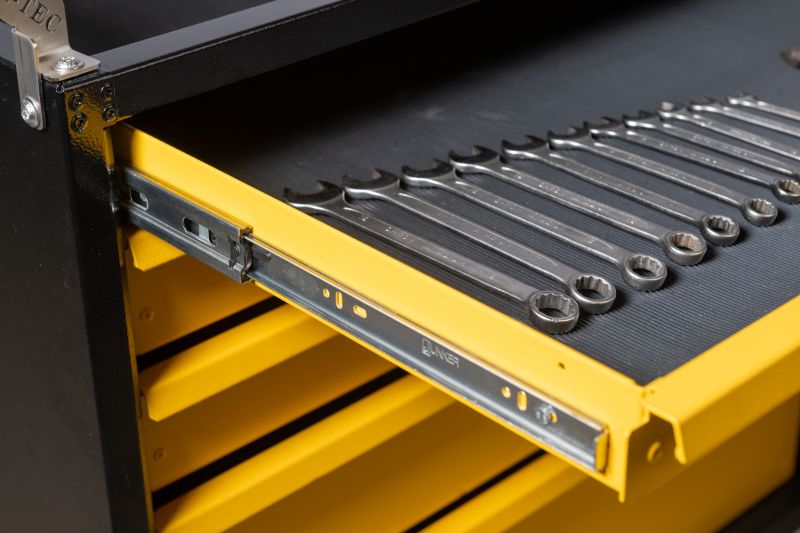

Drawers for setup tools & small parts
Keep hand tools and small setup items close to the machine. Drawer availability and usable dimensions depend on the selected trolley or storage system.
Storage trays, shelves & bins
Add storage for accessories and consumables alongside the main tool inventory. Select tray dimensions, bin layout and load capacity to match the equipment.
Perforated panels & mounting accessories
Consider compatible panels, hooks and holders for frequently used workshop tools. Mounting pattern and accessory compatibility are checked for the chosen system.
For an accessory inquiry: include the cabinet or trolley model, available mounting dimensions, tool inventory and the quantities required.
Specify the equipment around your workshop
| Selection point | What to include in your inquiry |
|---|---|
| Tool inventory | Interface types and sizes, number of assemblies, largest diameter and overall length. |
| Load requirements | Weight per assembly and expected total load; distinguish holder, level, pull-out and trolley limits. See rated load and load distribution. |
| Space & access | Available footprint, access sides, aisle width and clearance for opened pull-outs. |
| Daily workflow | Storage location, presetting area, machine positions and transport route. |
| Configuration & delivery | Cabinet or trolley quantities, accessories, colour preference, destination and required date. |
CNC tool storage cabinets and trolleys made in Germany
CNC tool storage cabinets and transport trolleys help organise tools from the tool store to the machine. Our configurable equipment, made in Germany, supports a workflow for storage, presetting and setup preparation. Choose stationary cabinets for a defined storage location and mobile CNC tool storage carts for moving job-specific tooling between work areas.

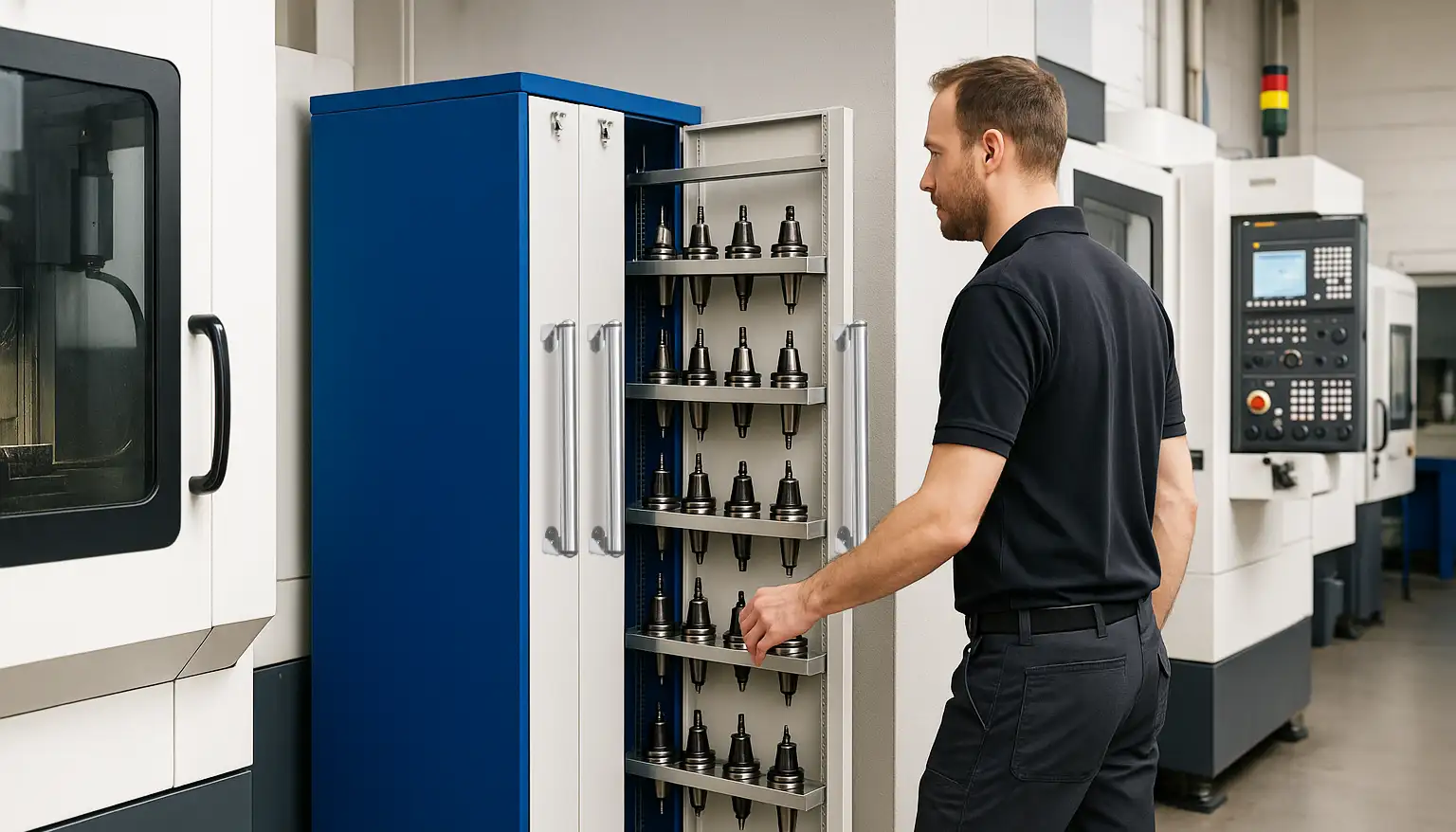

Heavy duty CNC tool storage cabinets with vertical pull-outs make use of cabinet depth while keeping tools accessible. Select cabinet dimensions around your tool inventory, available floor space and opening clearance. Suitable CNC tool holder storage inserts, racks, shelves and trays create dedicated positions for tools and setup accessories. Standard finishes and custom RAL colour requests can be discussed with your quotation.
A CNC tool transport trolley brings the assemblies to the machining cell. Drawers can accommodate setup tools and small parts, while compatible racks support tool holders. For a CNC tool trolley with 500 kg load capacity, the rating and load distribution must be confirmed for the selected configuration. Individual holder, shelf and drawer limits also need to be respected.
Plan CNC tool storage for SK, HSK, VDI or mixed tool holders using the complete interface designation. An SK40 tool holder storage trolley or a cabinet for HSK tooling needs suitable inserts, spacing and clearance for each assembly. Send tool lengths, diameters, weights and quantities so that compatibility can be reviewed.
Request configurable CNC tool cabinets and trolleys together with matching accessories. Include the required quantities, preferred dimensions, colour, delivery destination and timeframe. We review your requirements and confirm the proposed configuration, load limits and delivery scope in the quotation.
From tool storage to production support
Review equipment alongside your wider manufacturing needs. Explore CNC machining capabilities, 5-axis machining and precision turned parts. For setup planning, see manufacturing engineering services. Our CNC components and equipment glossary entry explains how the product categories relate.
Frequently asked questions
Workshop cabinets for CNC tools
How do I choose a CNC tool storage cabinet?
Choose height and depth around the tool inventory and available floor space. Allow additional clearance for fully opened pull-outs, handles and access from the working side. Overall width depends on the pull-out layout.
What is the maximum load per pull-out?
The reference rating is 900 kg for 200 mm pull-outs. Selected 300 mm and 400 mm versions are described with up to 1,000 kg. Because published data differ for some models, the final rating must be confirmed for the exact configuration.
Which storage holders fit SK, HSK and VDI tooling?
Holder options cover SK, HSK, VDI and Capto, depending on the selected holder. Provide the exact interface size, tool diameter, length and weight for compatibility review.
How many tools fit in a cabinet?
Example layouts accommodate up to 216 or 660 tools. These are configuration-specific examples, not a capacity guarantee for every cabinet. Tool envelope and holder arrangement determine usable capacity.
Can the internal layout be changed?
Compatible holders and modules can be repositioned on a 12.5 mm grid. Check the selected accessory system and its adjustment instructions before changing the layout.
What are the benefits of vertical pull-out tool cabinets?
Vertical pull-out tool cabinets provide organised storage within a compact footprint and can allow access from both sides of an opened pull-out. Suitable holders separate tool assemblies and make them easier to locate. Allow sufficient aisle space and opening clearance for the selected cabinet.
Which colours and delivery times are available?
Standard finishes combine RAL 5010 or RAL 7016 bodies with RAL 9016 pull-outs, or use RAL 7021 throughout. Special colours, current lead time, shipping terms and delivery scope are confirmed in the quotation.
CNC tool transport trolleys
What are the standard trolley dimensions?
The referenced CNC tool trolley configuration measures 970 mm wide × 580 mm deep × 1,010 mm high. Confirm the dimensions of the quoted version, including its selected accessories.
Can I request a CNC tool trolley with 500 kg load capacity?
The referenced trolley range is specified for loads up to 500 kg. This is a trolley rating, not a rating for each shelf, drawer or tool-holder position. The approved load and its distribution must be confirmed for the selected configuration.
Which accessories can be included?
Depending on the trolley, options include CNC tool-holder racks, drawers, trays and shelves. Specify each tool interface and the required setup items so that a compatible layout can be selected.
Are the tools shown in the pictures included?
The pictures illustrate possible uses and configurations. Cutting tools, toolholders, hand tools and other contents are included only when expressly listed in the quotation.
Can I request custom RAL colours or a company logo?
Colour and logo options can be requested. Available finishes, artwork requirements, additional charges and lead time are confirmed before ordering.
What should I send for an equipment quotation?
Send the required quantity, tool inventory, expected load, preferred accessories, available space and delivery address. Include any floor conditions or transport-route constraints relevant to the trolley.
